Radio Controlled Switch Connection

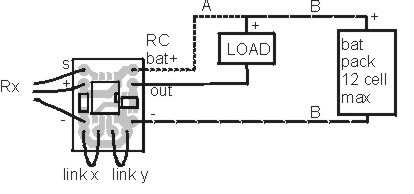

Connection Alternatives:
Use wire A to power load from RX battery and
wires B to power from a separate battery
link x to reverse
link y for intermittent output
![RC Switch Circuit](images/rcswckt.jpg)
Connection Alternatives:
Use wire A to power load from RX battery and
wires B to power from a separate battery
link x to reverse
link y for intermittent output
